14M 55 Taper Lock Bush Timing Pulley

14M Taper Lock Bush Timing Pulley Ref. 14M 55

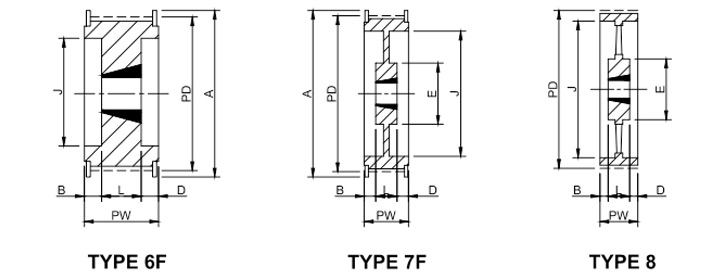

Taper lock timing pulley 14M55

Technical Specifications

PART NO PULLEY SIZE PULLEY TYPE BUSH NO MATERIAL NO. OF TEETH MAX BORE (MB) PD A PW J B L D E APPROX WEIGHT (kg)
N0692 28-14M-55 6F 2012 C.I. / FG200 28 50 124.78 128 70 94 19 32 19 - 2.20
N0693 29-14M-55 6F 2012 C.I. / FG200 29 50 129.23 138 70 98 19 32 19 - 2.50
N0694 30-14M-55 6F 2517 C.I. / FG200 30 60 133.69 138 70 100 12.5 45 12.5 - 2.70
N0695 32-14M-55 6F 2517 C.I. / FG200 32 60 142.60 154 70 108 12.5 45 12.5 - 3.60
N0696 34-14M-55 6F 2517 C.I. / FG200 34 60 151.51 160 701 110 12.5 45 12.5 - 4.55
N0697 36-14M-55 6F 2517 C.I. / FG200 36 60 160.43 168 70 120 12.5 45 12.5 - 5.20
N0698 38-14M-55 6F 2517 C.I. / FG200 38 60 169.34 184 70 130 12.5 45 12.5 - 6.20
N0699 40-14M-55 6F 3020 C.I. / FG200 40 75 178.25 188 70 138 12.5 45 12.5 - 7.00
N0700 44-14M-55 6F 3020 C.I. / FG200 44 75 196.08 212 70 155 9.5 51 9.5 - 8.60
N0701 48-14M-55 6F 3020 C.I. / FG200 48 75 213.90 226 70 170 9.5 51 9.5 - 10.40
N0702 56-14M-55 6F 3020 C.I. / FG200 56 75 249.55 256 70 208 19.5 51 9.5 - 12.40
N0703 64-14M-55 7F 3020 C.I. / FG200 64 75 285.21 296 70 240 9.5 51 9.5 170 14.50
N0704 72-14M-55 8 3020 C.I. / FG200 72 75 320.86 - 70 280 9.5 51 9.5 170 16.20
N0705 80-14M-55 8 3020 C.I. / FG200 80 75 356.51 - 70 315 9.5 51 9.5 170 17.50
N0706 90-14M-55 8 3020 C.I. / FG200 90 75 401.07 - 70 360 9.5 51 9.5 170 20.10
N0707 112-14M-55 8 3020 C.I. / FG200 112 75 499.11 - 70 457 9.5 51 9.5 170 28.40
N0708 144-14M-55 8 3020 C.I. / FG200 144 75 641.71 - 70 600 9.5 51 9.5 170 36.20
N0709 168-14M-55 8 3020 C.I. / FG200 168 75 748.66 - 70 706 9.5 51 9.5 170 49.00
N0710 192-14M-55 8 3020 C.I. / FG200 192 75 855.62 - 70 813 9.5 51 9.5 170 53.00
